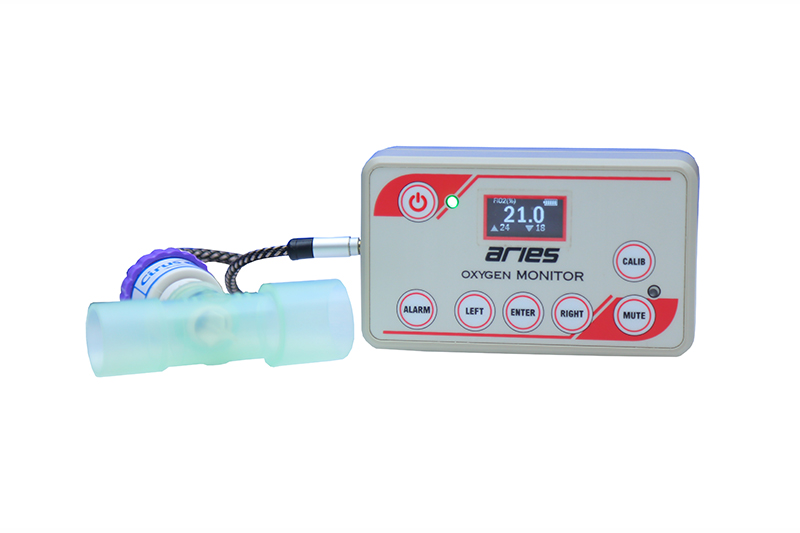

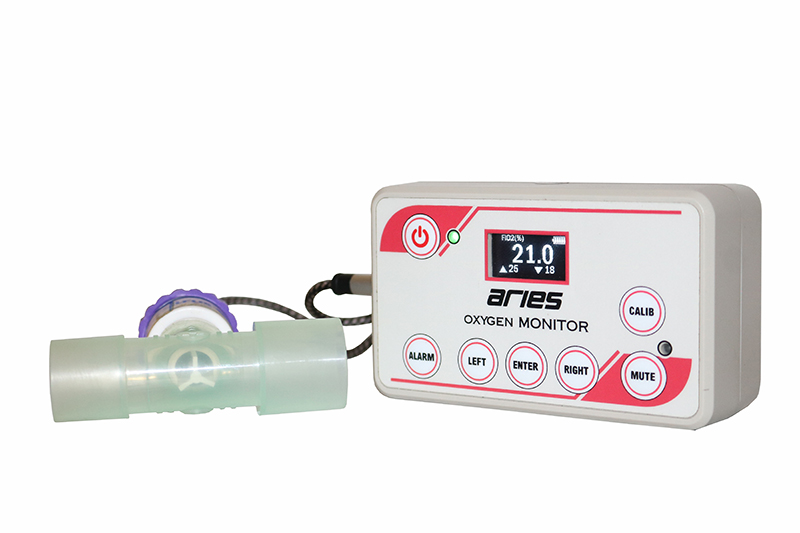

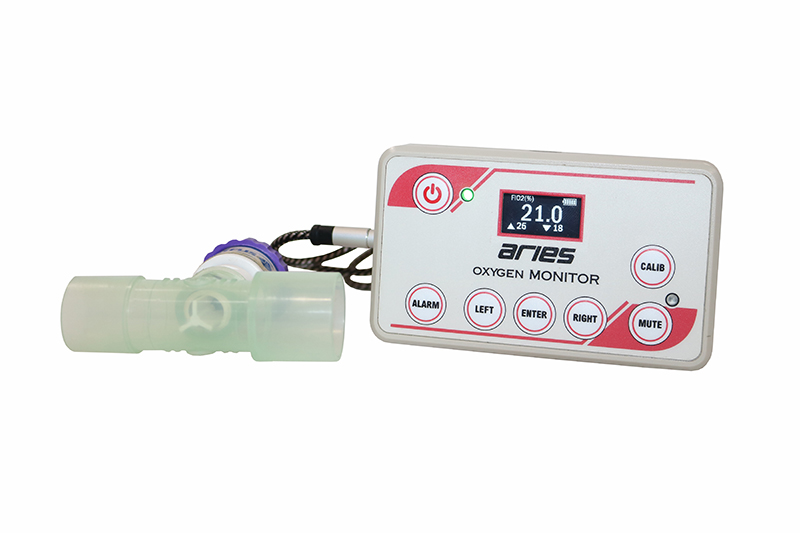

Oxygen Analyzer measures the fraction of oxygen present in the inspiratory limb of a breathing system. ARIES Oxygen Analyzer designed to operate with galvanic oxygen cell . ARIES Oxygen Analyzer can be used with wide application areas like Anaesthesia OT, NICU, Manifold rooms of hospital and Field Service in Biomedical Segment.
- Low and High alarm setting, Alarm resets when the desired Fi02 resumed.
- User can select between fast calibration and detailed calibration, auto calibration built in to avoid frequent calibration cycles.
- Internally compensated for Temperature and Humidity.
- Mute Alarm .
- 1% accuracy @100% calibration @25°C .Sensor life 50k hours .
- Rechargeable in built battery for 10hrs field use .
- Manufactured according to ISO 13485: 2016.
Battery
- 3.7V, 10hrs operation at full charge .
Input Voltage DC:
- 5.0V , 2 Amp
O2 Sensor cable length
- 1.5 meter s(can be customized) .
T-connector Diameter
- 22mm ISO .
Weight
- 130 grams .
Industry Usage
It can be used with wide application areas like Anaesthesia OT, NICU, Manifold rooms of hospital and Field service in Biomedical, Oxygen concentrator systems verifications.
Gas Calibration
FiO2 Accuracy
Response time
Default alarm range
Mute reset time
Display parameters
